Nakakin

Rotary Piston Pumps

 Why we are representing Nakakin:


Nakakin pumps are made in their own factory from step one:  from the casting of pump parts to the design. Quality guarantee because there is only one point of contact. We are happy to represent Nakakin because they are in line with our policy: high quality and they also continue where dosing becomes difficult.


 Every pump that leaves the manufacture of Nakakin is checked by a 100 point check and is tested by a maximum stress test. This guarantees a long-life and low-maintenance product life.


  • Safe conveyance of food, beverages, cosmetics, pharmaceuticals, and chemical products
  • Gentle and high-performance conveyance at low rotation speed
  • High suction power and constant liquid flow
  • For liquids of all viscosities with or without particles
  • High degree of cleanability, CIP/SIP capable
  • Wide range of options available
  • Discharge pressure up to 15 bar
  • Feeding capacity up to 88.200 l/h

High quality - high performance

The rotors are made from a patented alloy: Nakamura Metal no. 3. The low expansion of this alloy at high temperatures ensures the smallest possible distance between rotor and housing: 70 μm!


This guarantees:

  • A gentle and high-performance conveyance at low rotation speed
  • High suction power and constant liquid flow
  • The conveyance of liquids of all viscosities
  • Precision exact till 1/100 mm – the highest standard for non-contact pumps!

 EHEDG- and 3A-certified pump models available


Download catalog

How it works

Operating principle

 Nakakin rotary piston pumps operate due to the positive displacement device principle.

The two rotors on parallel axes run by a synchronized gear and rotate in the opposite direction to each other.

 They touch neither each other nor the casing.


The sealing of the chambers that convey the product is only operated by the clearance between casing and rotor that should be as small as possible.

The conveyance occurs gently and with low-pulsation.


Nakakin Rotary piston pump 3DCG

Nakakin, bestpump, for large particles and high fiscosity material!

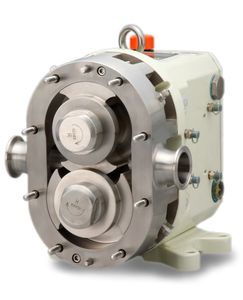

ROTARY PISTON PUMPS JM/JO SERIES

Most popular model with inside seal

 Features and Benefits


  • Smallest Clearance. The special alloy allows for the smallest clearance between rotors and casing.
    • Constant conveyance
    • Self-priming ability
    • Conveyance of all levels of viscosity


  • High Degree of Cleanability. Incredibly easy assembly/disassembly. Completely cleanable and sterilizable with CIP/SIP processes. Standard: 95°C, High temperature: 150°C


  • Inside Seal. Precision pump – a high rigidity is reached by shortest distance between bearing and rotor.
    • Mechanical Seal

                        High durability and suitable for a wide range of liquids

  • O-ring Seal Type Easy to dismantle and reassemble after cleaning


  • Maximum Discharge Pressure 1.5 Mpa = 15 bar
  • Vertical and Horizontal Liquid Flow Available
  • Double and Single Blade Rotors Available
  • Interchangeable with the RM/RO Series

Video

Model JM25

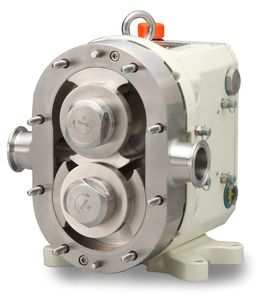

ROTARY PISTON PUMPS JMU SERIES

Our All-rounder with Outside Mechanical Seal (Single, Quench, and Tandem Type Available)

 Features and Benefits


  • Smallest Clearance

                    Our special alloy allows for the smallest clearance between rotors and casing.

  • Constant conveyance
  • Self-priming ability
  • Conveyance of all levels of viscosity


  • High Degree of Cleanability
  • Incredibly easy assembly/disassembly.
  • Completelycleanableandsterilizable with CIP/SIP processes.
  • Standard: 95°C, High temperature: 150°C


  • Outside Mechanical Seal
  • High cleanability – the few parts in contact with the liquid can be dismantled and reassembled easily.
    • Single Mechanical Seal Type

Our standard.

  • Quench Seal Type

                     Quenching seal with oil seal. Moderate price compared a tandemseal (0.03 MPa = 0.3 bar)

  • Tandem Seal Type

                    Quenching seal by mechanical seal.  A steam option is available. (0.25 MPa = 2.5 bar)


  • Maximum Discharge Pressure 1.5 Mpa = 15 bar
  • Vertical and Horizontal Liquid Flow Available
  • Double and Single Blade Rotors Available

Main Catalog

.

Video

Model JMU25

Principle of the pump

The pump can even transport big partipales!

COMPANY PROFILE

New video: how they make your Nakakin pump!

Photo gallery
