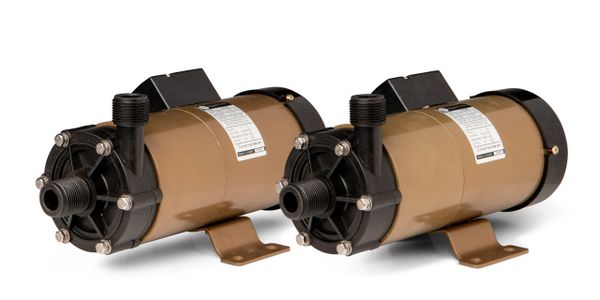

HETHON - HQ magnetic drive pumps

NEW!

Ideal pump that never leaks!

HETHON was originally a pump company, later on grown in dry material handling and dosage with its own brand, to come out now with her own pump: a magnetic drive pump!


Never replace seals again, because the pump is leak-free! The HETHON magnet driven pumps are ideal for installation in applications for this reason.


Due to the small number of parts, the HETHON magnetic pump is very easy to maintain.

2 models: HQ- 30 and 40

Do you want to pump abrasive, acidic products or beer for example, without leakage?

This is easy with the new high-quality HETHON-HQ multi-purpose magnetic drive pumps!


These can be supplied with a polypropylene wet-end set, or standard. It is compact, lightweight with a flow of 32 to 52l / min.

Corrosion resistant

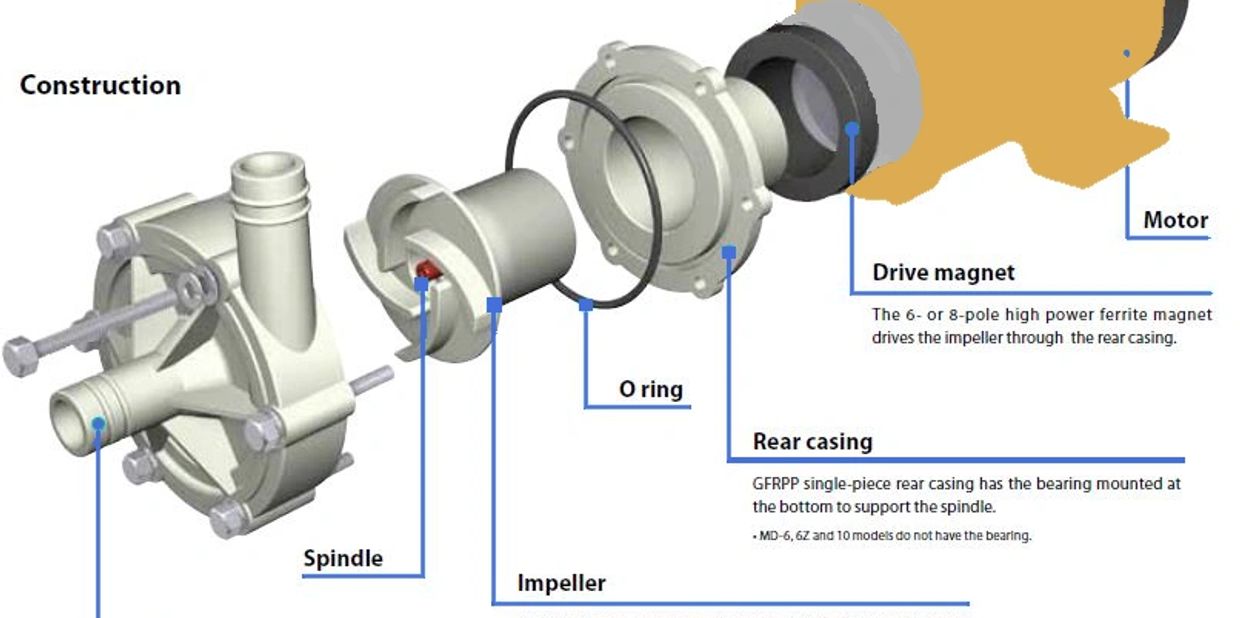

We noticed from our customers that there was a need for a reliable chemical pump that is corrosion resistant and durable. With this pump we succeeded: the pump is magnet driven, is unique sealed, so that the pump chamber does not come into contact with chemicals. The impeller is activated by magnets. It can be used for instance in OEM photo processors and other equipment.

Benefits:

  • seal less
  • prevents corrosion
  • no liquid leakage
  • completely closed housing
  • very silent
  • plastic pump housing
  • Suitable for pumping liquids up to 90 ° C!

Specifications:

  • Power: 10 W - 240 V
  • Connections in- / output: 1/2 "male thread
  • Capacity: 32 to 52 l/per minute
  • Head: 8-13 meters
  • Temperature: up to 90 ° C
  • CE certified

Price:



HQ-30: € 333,-

HQ-40: € 395,-

Flow charts and dimensions

Flow charts

Flow charts

Flow charts

Above the performance curves of the HQ-30 & HQ-40

Dimensions

Flow charts

Flow charts

Above the dimensions of the HQ-30 & HQ-40

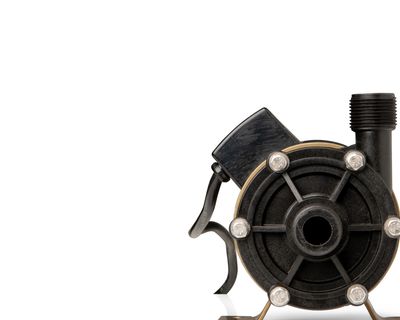

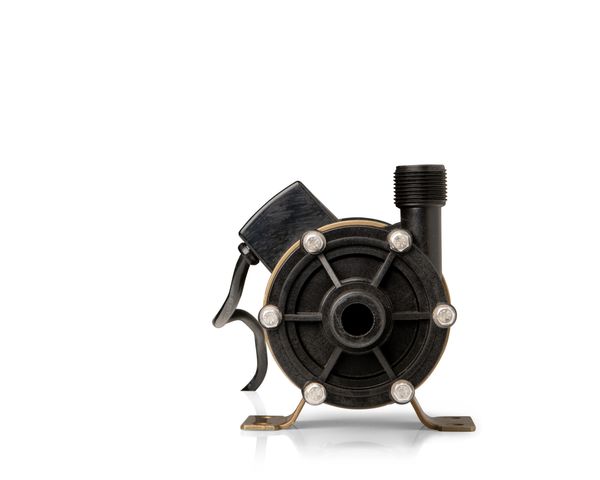

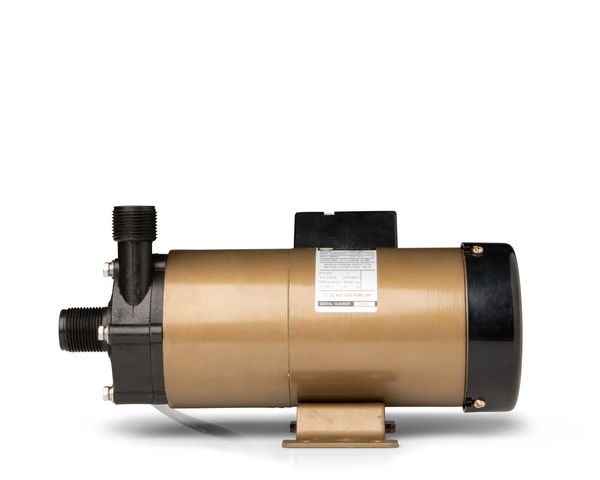

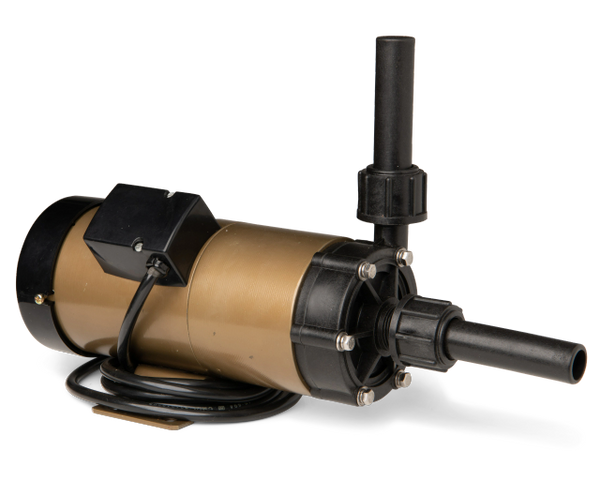

Photo gallery
