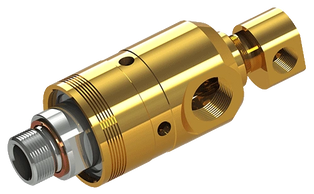

Haag+Zeissler - Rotary- and swivel- joints - Multiports

Manufacturer for your rotary joint and swivel joint

We as HETHON have a very long history together.  After  losing sight of each other for a vew years we renewed our relationship.

We are representing HAAG + ZEISSLER because we share the same philosophy:


Quality

They regard themselves as a manufacturer of high-grade, first-class products, started in 1979 as a simple commercial company.  Their rotary joints and swivel joints are manufactured for you on site with the latest CNC machines.

Quality, safety, experience, professionalism and customer satisfaction. These are the characteristics by which their customers have judged them every day for over 40 years.


Very good service

Their storage capacity with over 10,000 individual parts in stock speaks for itself and sets us apart from the competitors. In the normal case they reliably dispatch parts within 24 hours if they are in stock.

Just like us at Hethon, they provide the best possible service, 100% customer satisfaction and are always solution-oriented!


Suitable for

The rotary joints and swivel joints are suitable for :


  • cold and hot water
  • steam
  • heat transfer oil
  • hydraulic oil,
  • compressed air
  • various gases
  • cooling lubricants
  • vacuum and many more media
  • Temperatures up to 350 ° C
  • pressures up to 420 bar
  • speeds up to 40000 rpm are possible
  • joints are available from DN 3 to DN 800

More infomation

High quality

Made in Germany

Made in Germany

Made in Germany

With Haag Zeissler we can offer 24 standard series to our customers.


Outside of the standard ranges, custome-made solutions are possible because of their own engineering, who can think along with you. So there is always a solution!

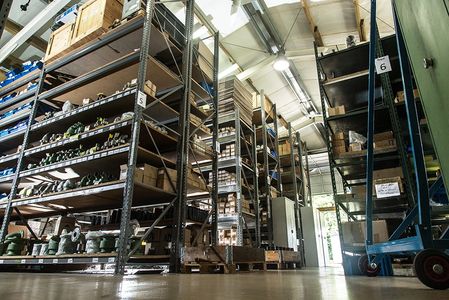

Warehouse

Made in Germany

Made in Germany

The smart way of working ensures that the delivery time is short. More than 10.000 modular products are ready to be assembled. This makes delivery time very short.

High-quality engineering

Modern measuring technology

Modern measuring technology

Just like HETHON, Haag + Zeissler works with an excellent 3-D drawing program. This way a problem can be traced immediately and you have a good idea of your product.

Modern measuring technology

Modern measuring technology

Modern measuring technology

Testing, analysis and further development of your rotary joints is easy with materials that show an accurate end result at a high level.

Products

Rotary joints

Multiport rotary joints

Multiport rotary joints

Rotary joints are for conveying liquids or gases into or out of rotating or swivelling assemblies of machines or installations.

Roatary joints can be used for single feeding or draining of the medium (1-way) or with combined feeding and draining (2-way).

More information

Multiport rotary joints

Multiport rotary joints

Multiport rotary joints

Multiport rotary joints are for conveying liquids or gases into or out of rotating or swivelling assemblies of machines or installations.

Multiport rotary joints can be used for the supply and discharge of media in 2 to 11 passages. In doing this, the media passages are fully sealed from each other and they can be independently subjected to different pressures and media.

More information

Swivel joints

Multiport rotary joints

Swivel joints

 Swivel joints are for conveying liquids or gases into or out of rotating or swivelling assemblies of machines or installations.


Swivel joints are employed for the transport of liquids or gases when the pipelines simultaneously have swivel movements or slow rotations.

More information

General information-rotating joint

What is a rotary joint?

Rotary joints and swivel joints are for conveying liquids or gases into or out rotating or swivelling assemblies of machines or installations.


Media you can use it for:

  • water
  • steam
  • air
  • heat transfer oils
  • hydraulic oils
  • non-toxic gases
  • many more



Fields of use

You can use them for:

  • cooling-or heating rollers
  • feeding of heating medium into drying devices
  • cleaning equipment
  • supply of actuators on rotating portals
  • cooling of furnace rollers
  • calenders and extruders
  • moving pipelines
  • feeding of media to heated or cooled mixers, kneading machines, cookers, grinders, pelletisers, screw conveyors, etc.



Single flow

Single flow

Feeding or drainage

Double flow

Double flow

Single flow

Combined feeding and drainage/stationary internal pipe

Double flow

Double flow

Double flow

Combined feeding and drainage/rotating internal pipe

General information-Multiport and swivel joint

What is a Multiport?

Multiport joints can be used for the feeding and drainage of media in 2 to 11 passages. The media passages are strictly separated from each other by seals and can carry different media at different pressures independently of each other.

Function

Multiport joints are suitable for supplying hydraulic or pneumatic actuators in rotating components of installations or machines. Multiport joints are also used for the feeding and drainage of cooling and heating media if more than one fluid circuit is required. Sliprings for measureing and control signals or for the supply of electrical loads can be adapted.

What is a swivel joint?

Swivel joints are used for the transport of liquids or gases in cases where the pipelines execute swivelling movements or slow rotary movements at the smae time.


Field of use:

  • Swivelling pipelines
    clarifier scrapers
  • mobile installation components

Het grote nieuws delen

Het grote nieuws delen

Haag+ Zeissler have been made eight

basic designs with freely selectable connected components, such as flanges, welding ends, female thread and male thread.

Function

Het grote nieuws delen

Function

Here you can see the construciton of the swivel joint.

Video

Model serie 9001

Multiport Joints Series MBB for pneumatic / multi-way rotary feedthrough series MBB for pneumatics

Working together

We have a good relationship with our supplier, the information flow and technical support are direct and prompt in both directions. We have the same philosophy, which makes working together perfect!
